Environmental Safety & Heavy Metal Compliance: SGS Official Test Analysis on Lead (Pb) Content for KSL ASA Panels

Published By: ANHUI KSL NEW MATERIAL CO., LTD
SGS Report No.: NGBPC26006690801 (Issued by SGS-CSTC Ningbo Laboratory)
Test Standard: IEC 62321-5:2013 (Elemental analysis by Inductively Coupled Plasma Optical Emission Spectrometry · ICP-OES)
Sample Tested: KSL ASA PANEL (Specification: 112*6*1900 mm / Brown Solid Piece)
Verified Verdict: Lead (Pb) tested at only 33 mg/kg (ppm), well below the EU RoHS Directive (EU) 2015/863 mandatory limit of 1,000 mg/kg, achieving a 96.7% safety margin!

Part 1: Official Data Audit & Verification Table (SGS Report No. NGBPC26006690801)

Part 2: SGS Official Test Report High-Resolution Scans (4 Pages)

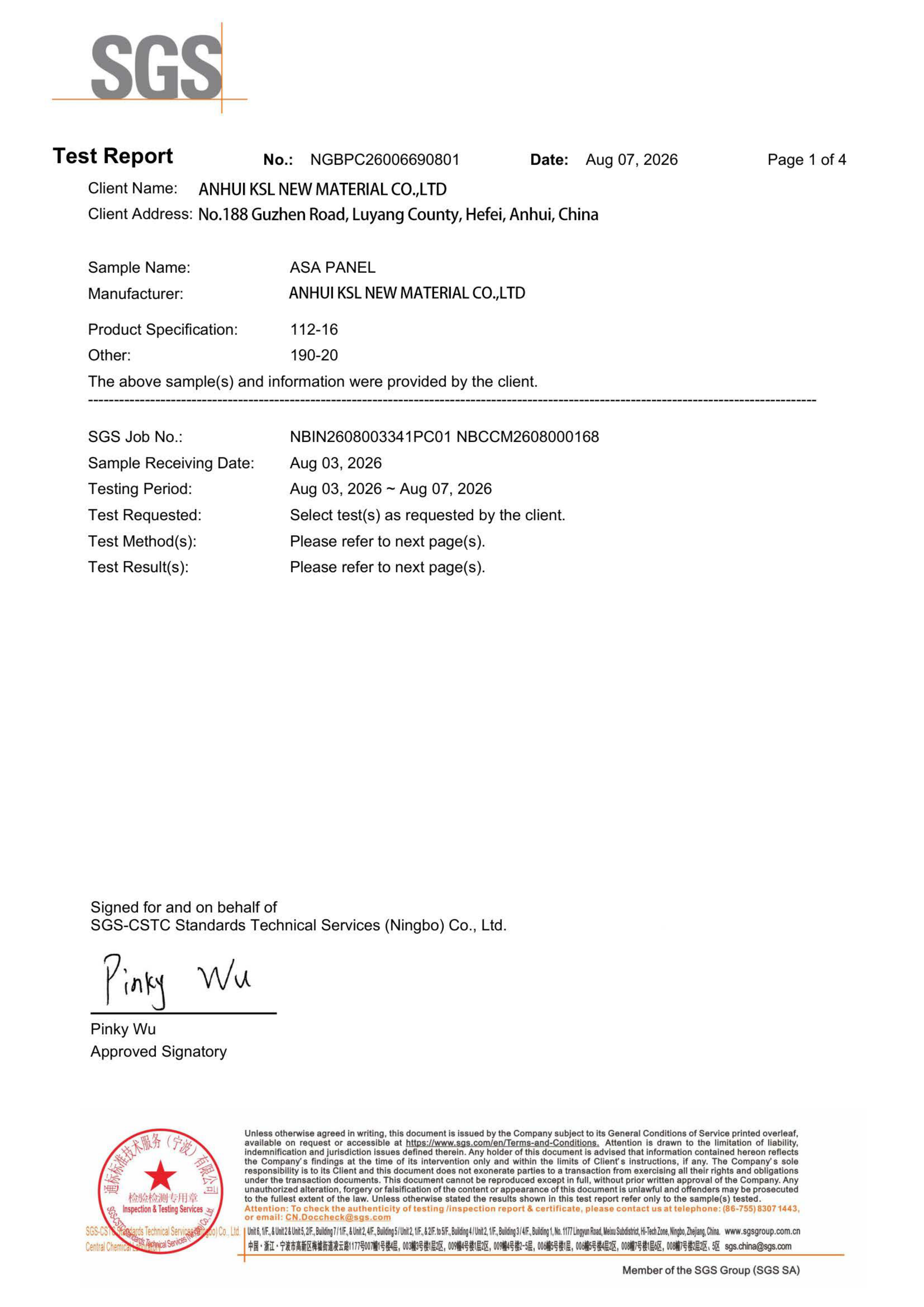

Page 1: Client & Sample Registration Verification

• Authenticates ANHUI KSL NEW MATERIAL CO.,LTD as the official client and manufacturer.

• Lists sample description ASA PANEL (112*6*1900 mm) with official SGS Ningbo laboratory seal and authorized signature by Pinky Wu.

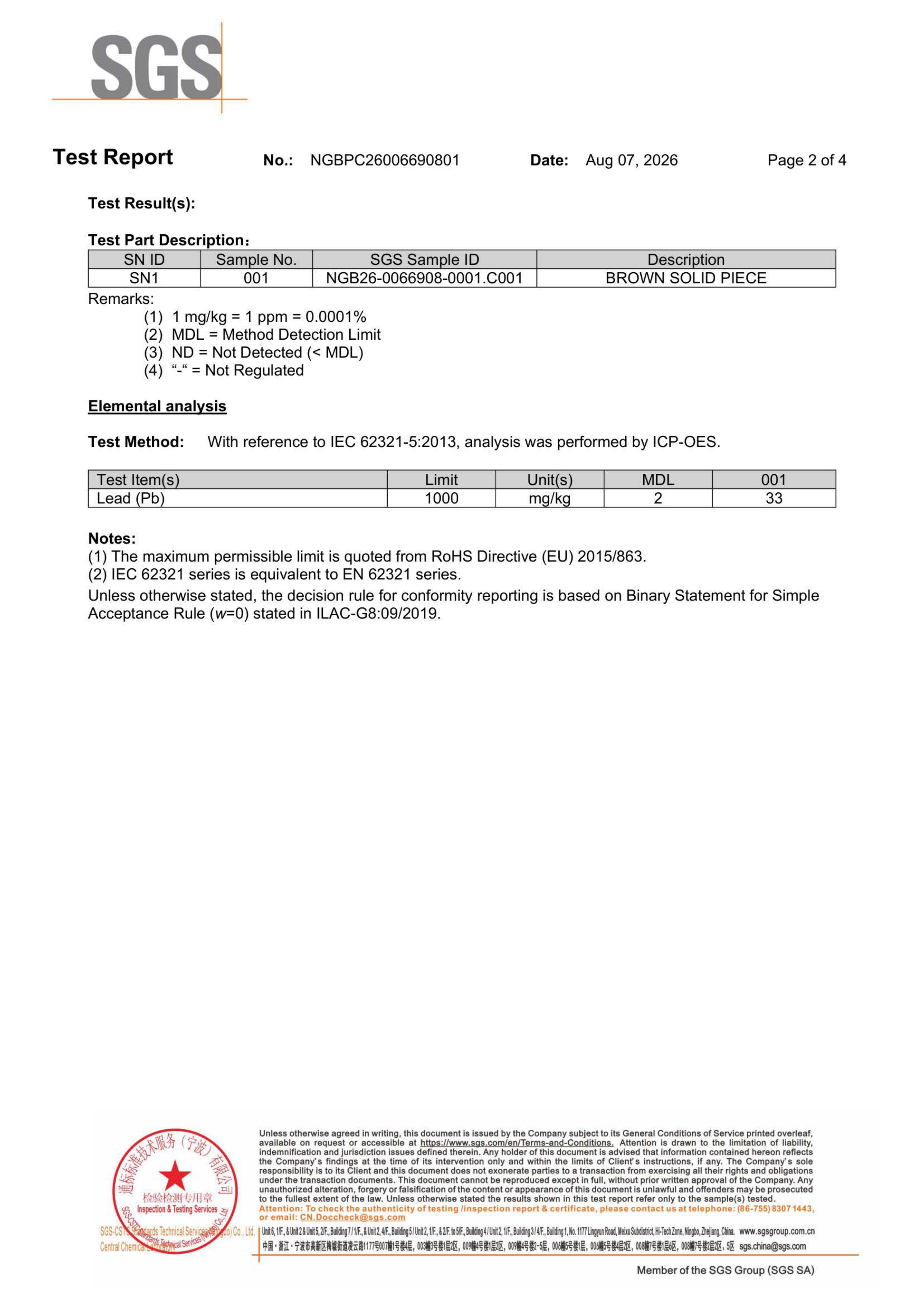

Page 2: Core Analytical Data & RoHS Compliance (Critical Data Page)

• Confirms testing under IEC 62321-5:2013 with ICP-OES instrumentation.

• Quantified result: Lead (Pb) = 33 mg/kg, compared against the RoHS Directive (EU) 2015/863 threshold of 1,000 mg/kg.

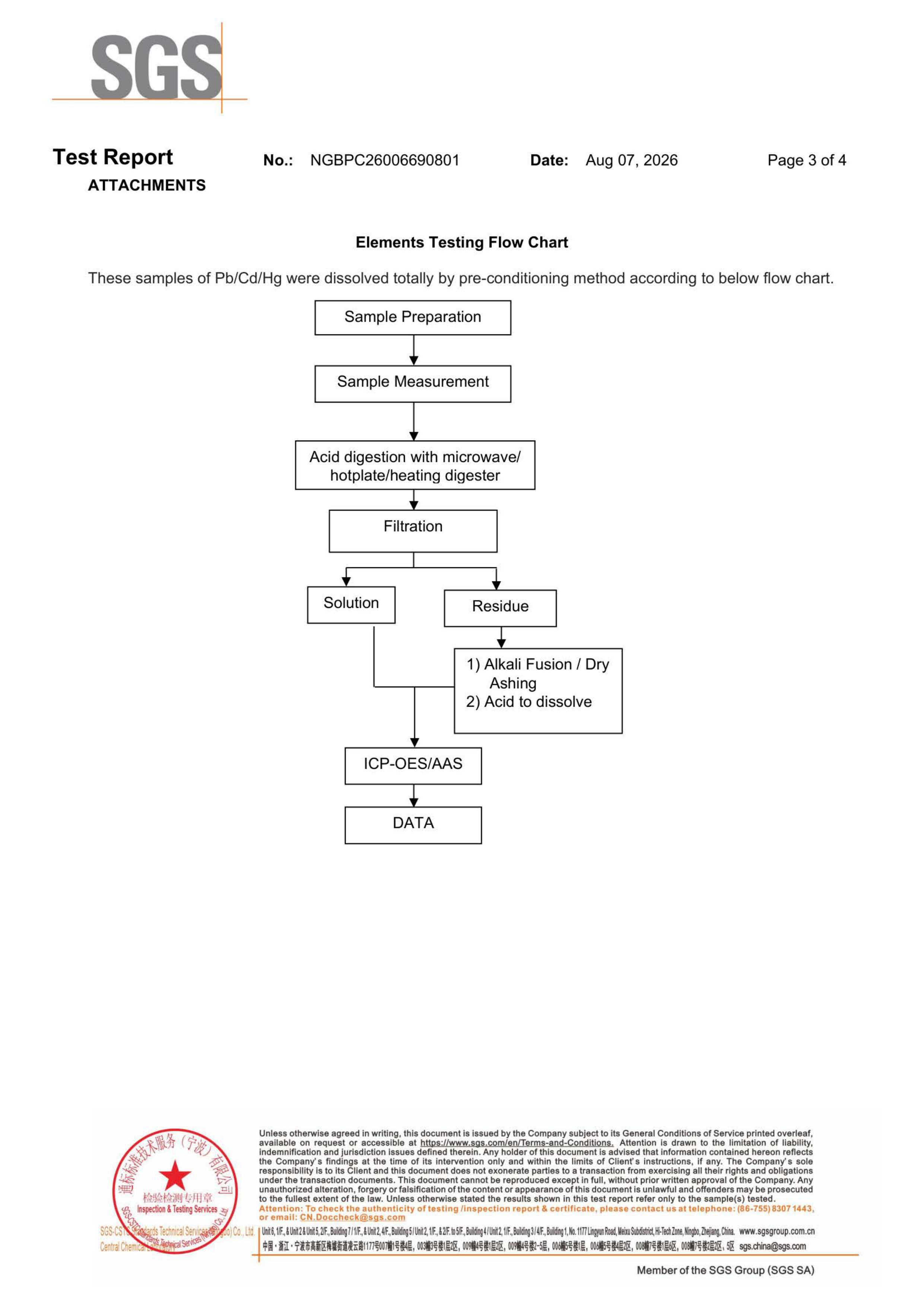

Page 3: Total Acid Digestion Flow Chart

• Details the rigorous chemical dissolution protocol (acid digestion via microwave/heating digester), guaranteeing that heavy metals embedded within the core polymer matrix are completely captured.

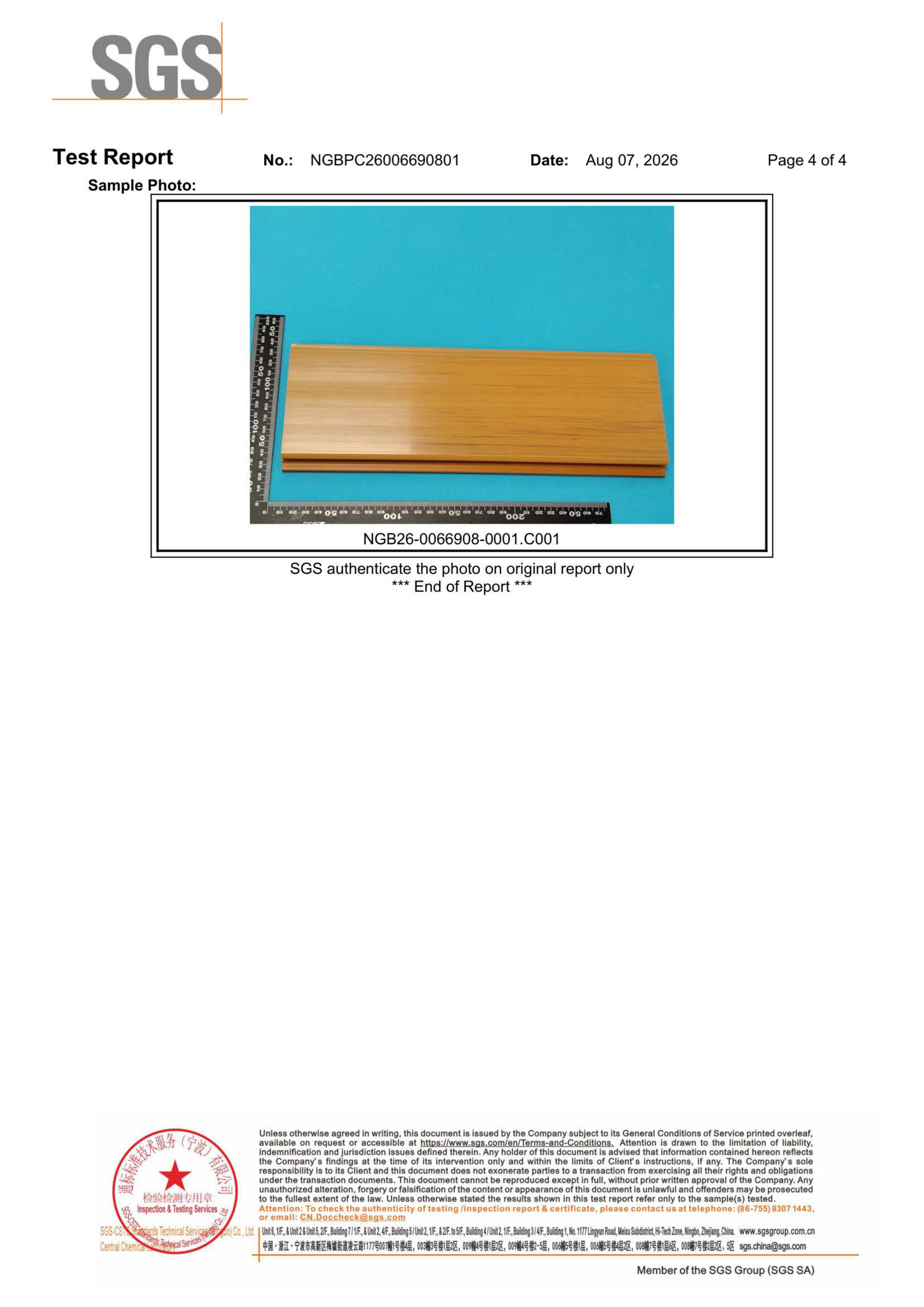

Page 4: Official Sample Photo (SGS Ningbo Lab)

• Displays official sealed sample photograph NGB26-0066908.0001 / C001 (Brown solid ASA panel).

Part 3: Engineering Importance of Ultra-Low Lead in Architectural Cladding

1. Eliminating Heavy Metal Leaching: Traditional low-end PVC and composite panels frequently utilize inexpensive lead salt stabilizers. Under prolonged outdoor UV exposure and acid rain weathering, lead compounds leach out, contaminating soil and stormwater runoff.

2. Worker & Inhabitant Health Safeguards: KSL's non-toxic formulation ensures zero toxic dust hazards during on-site cutting and fabrication, making it ideal for schools, healthcare centers, and residential developments.

3. Global Regulatory Clearance: Fully aligns with EU RoHS (Directive 2011/65/EU & (EU) 2015/863), REACH SVHC safety compliance, and North American environmental building standards.

Part 4: Manufacturing Technology Behind KSL Eco-Safety

• 100% Organic Calcium-Zinc (Ca/Zn) Stabilization: Completely replaces hazardous lead/cadmium thermal stabilizers with eco-friendly Ca/Zn complex additives.

• Virgin Ultra-Weatherable ASA Capping: Acrylonitrile-Styrene-Acrylate co-extrusion capping provides permanent UV resistance without degradation or chalking.

• Automated Clean-Room Compounding: Closed pneumatic raw material feeding eliminates batch cross-contamination.

Part 5: Contact & Inquiries

ANHUI KSL NEW MATERIAL CO., LTD

• Manufacturing Facility: No. 188 Guzhen Road, Luyang District, Hefei City, Anhui Province, China

• Main Product Lines: Co-extruded ASA Wall Cladding / WPC Outdoor Decking / Acoustic Fluted Wall Panels

• Global Sales & Technical Support:

  • WhatsApp: +86 13866161113

  • Business Email: poppylanee8766@gmail.com

  • Trade Channel: Alibaba.com Verified Gold Supplier Store
